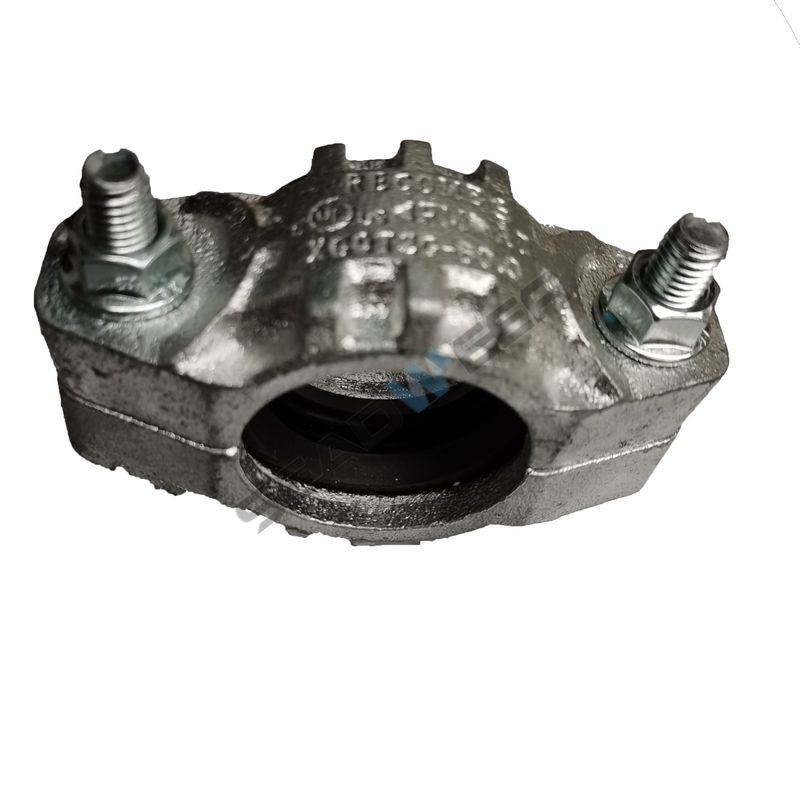

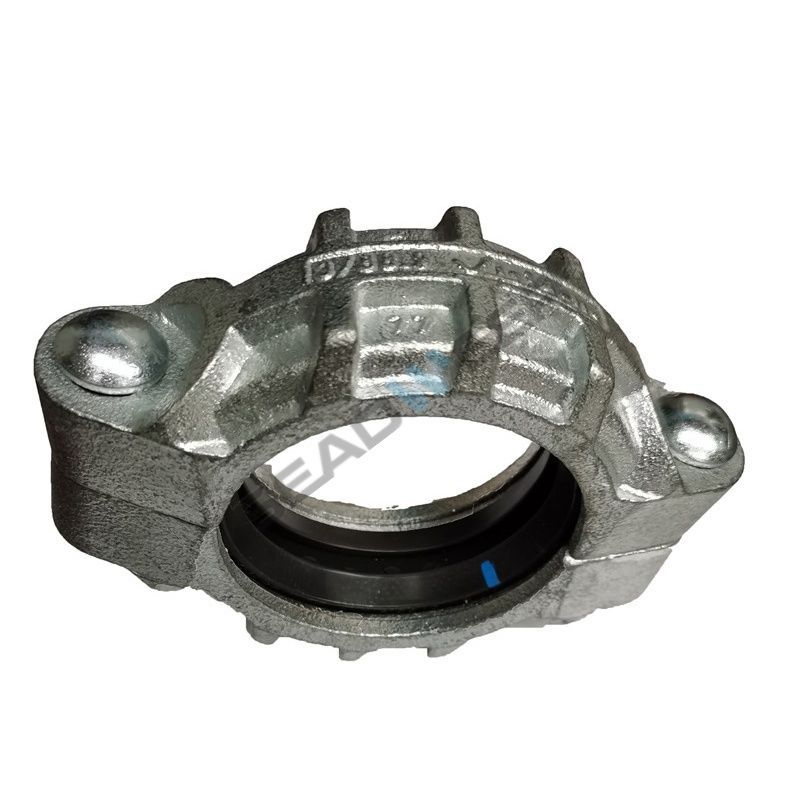

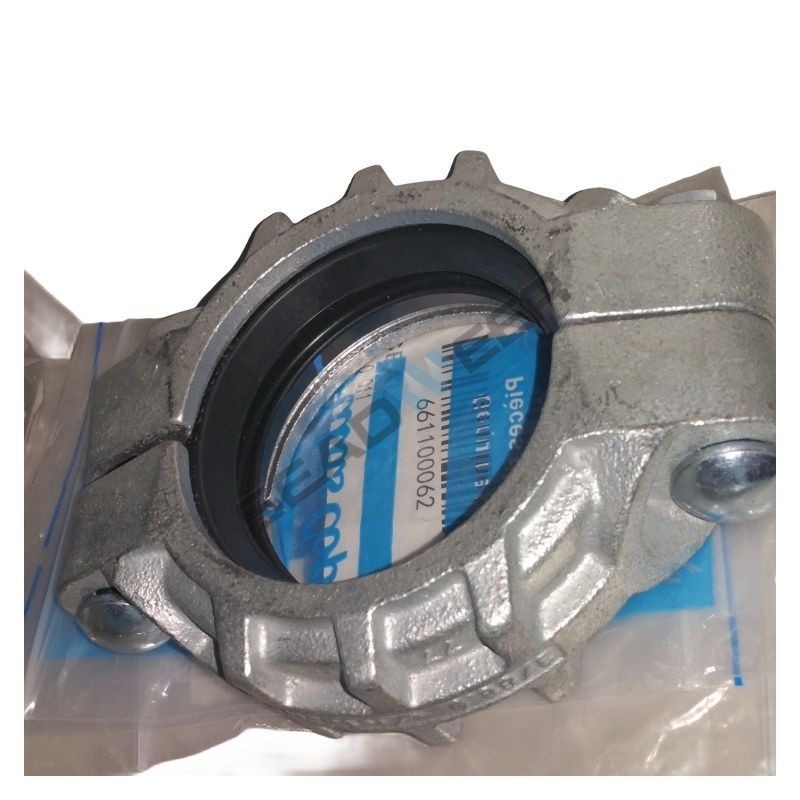

Genuine Atlas Copco 0634100145 Pipe Clamp Seal Coupling Assembly

Product Overview

The Atlas Copco Coupling (Part Number: 0634100145 / 0634-1001-45) is a premium, high-precision pipe clamp seal coupling assembly engineered exclusively for industrial-grade compressed air and lubricant fluid systems. Designed to meet the stringent technical standards of heavy-duty screw air compressors, this genuine mechanical component provides an unyielding, leak-proof interconnection between critical rigid and semi-rigid piping networks.

By integrating a heavy-duty metallic retaining collar with a high-resilience elastomeric sealing interface, this coupling effectively absorbs systemic vibrations, dampens pressure pulsations, and maintains structural integrity under continuous, high-temperature operations. It serves as a vital component in minimizing pressure drops and preventing fluid migration across high-velocity flow lines.

Technical Specifications

The structural geometry and physical parameters of the coupling are manufactured to exact tolerances, ensuring seamless drop-in compatibility with genuine Atlas Copco piping architectures.

Physical Dimensions & Weight

• Length: 17.5 cm (175 mm)
• Width: 12.5 cm (125 mm)
• Height: 4.8 cm (48 mm)
• Net Weight: 1.48 kg (1480 g)

Material Science & Performance Ratings

• Coupling Housing: High-tensile nodular cast iron / premium-grade stainless steel alloy, optimized for superior fatigue resistance and tensile strength under cyclic pressure loading.
• Sealing Element: Proprietary fluoropolymer (FKM / Viton) or advanced EPDM matrix, engineered for complete chemical compatibility with synthetic compressor lubricants.
• Thermal Operating Range: Capable of sustaining continuous operation at temperatures exceeding 100°C without experiencing thermal degradation or compression set.
• Application Environment: High-frequency vibration, medium-to-high pressure compressed air, and oil-gas mixture fluid lines.

Key Product Advantages

1. Superior Sealing Integrity under Dynamic Loading

The internal elastomeric profile is engineered to exert uniform radial pressure across the pipe circumference. This precise distribution guarantees absolute air and oil-tight seals, preventing hazardous oil mist migration and micro-leakages that compromise system efficiency.

2. Advanced Material Durability

The metallic housing undergoes specialized anti-corrosion surface treatments, providing exceptional resistance against environmental moisture, industrial airborne chemical agents, and internal acidic byproduct exposures. The inner seal retains its elasticity under long-term exposure to high-temperature synthetic oils.

3. Stress and Vibration Mitigation

Industrial air compressors generate continuous mechanical resonance and thermal expansion cycles. The engineered geometry of the 0634100145 coupling allows for micro-axial movements and angular misalignments, acting as a stress-relief joint that protects upstream and downstream rigid pipe structures from fracture.

4. Simplified Maintenance Architecture

Unlike permanent welded joints or complex flange configurations, this genuine coupling segment facilitates rapid assembly and disassembly. This reduces maintenance downtime during routine filter elements, separator cores, or airend servicing.

Typical Applications & System Integration

This specific coupling assembly is predominantly deployed within the internal fluid and pneumatic distribution networks of large-scale Atlas Copco GA Series oil-injected rotary screw compressors, specifically targeting high-capacity platforms such as the GA132+ and GA160 systems.

Primary Installation Zones

• Airend Discharge Lines: Connecting the high-temperature compression chamber (Element) output to the secondary cooling and treatment modules.
• Oil Separator Vessel Interfaces: Securing the large-diameter connections between the air-oil receiver tank, minimum pressure valves, and aftercoolers where fluid dynamics and thermal pressures peak.
• Lubricant Return Paths: Linking heavy-duty oil filtration manifolds and thermal valve housings back to the main injection circuits.

Frequently Asked Questions (FAQ)

Q1: Is the sealing ring included with the 0634100145 coupling assembly?

A: Yes. The part number 0634100145 designates a complete factory-certified coupling assembly, which comprises the high-strength outer retaining clamp, the dedicated high-temperature sealing gasket, and the required industrial-grade fastening hardware.

Q2: What are the primary indicators that this coupling requires inspection or replacement?

A: Regular preventative maintenance inspections should monitor for visual signs of oil residue accumulation around the coupling joints, audible compressed air leaks, or visible deterioration of the exposed rubber seal edges. Any structural deformation of the metal clamp due to external impacts also requires immediate replacement.

Q3: Can the internal seal ring be lubricated during installation?

A: When installing a genuine coupling, a light film of standard compressor lubricant can be applied to the sealing lips to ensure smooth seating onto the pipe ends. However, the use of incompatible petroleum jellies or unapproved greases must be avoided to prevent chemical degradation of the elastomer.

Q4: Why is it critical to use this exact part number rather than generic alternatives?

A: The 0634100145 coupling is engineered with precise tolerances for weight (1.48 kg) and structural dimensions to match the specific harmonic vibration frequencies and thermodynamic requirements of Atlas Copco equipment. Generic alternatives often fail prematurely due to chemical incompatibility with synthetic compressor oils or an inability to withstand high-pressure pulsations, which can lead to catastrophic line blowouts.
