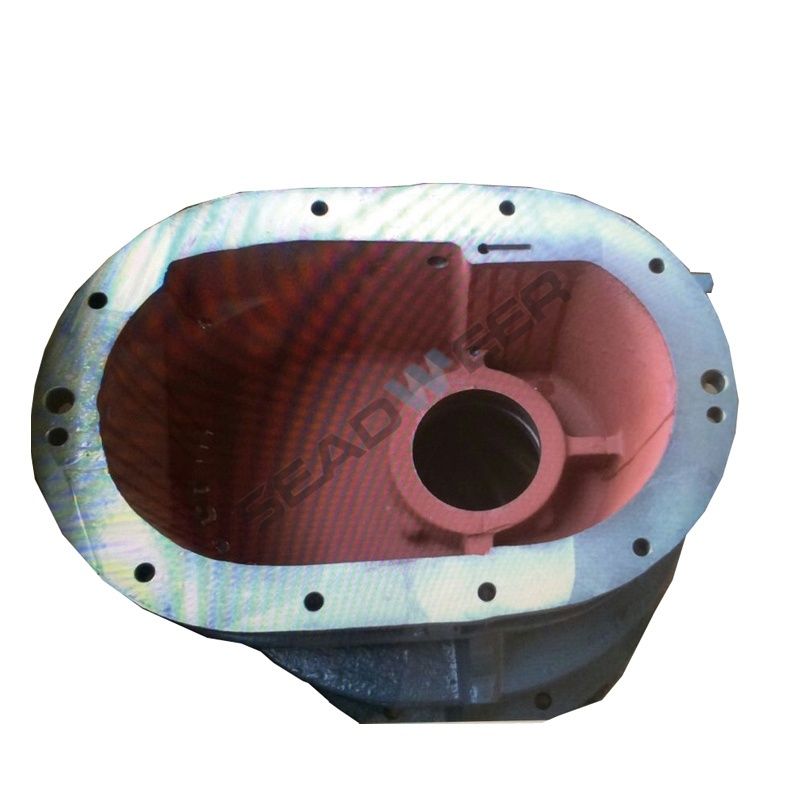

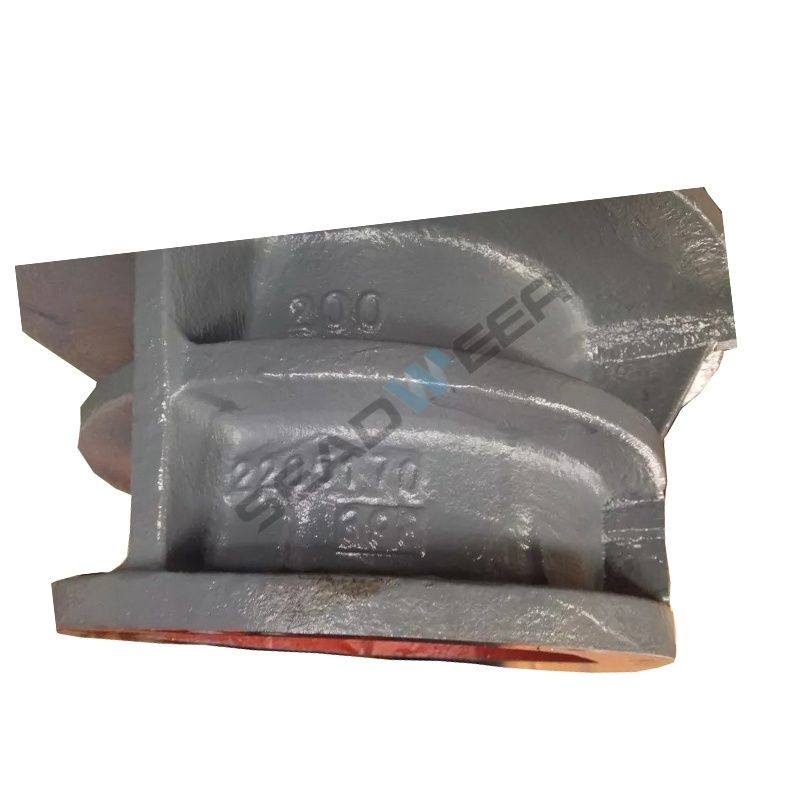

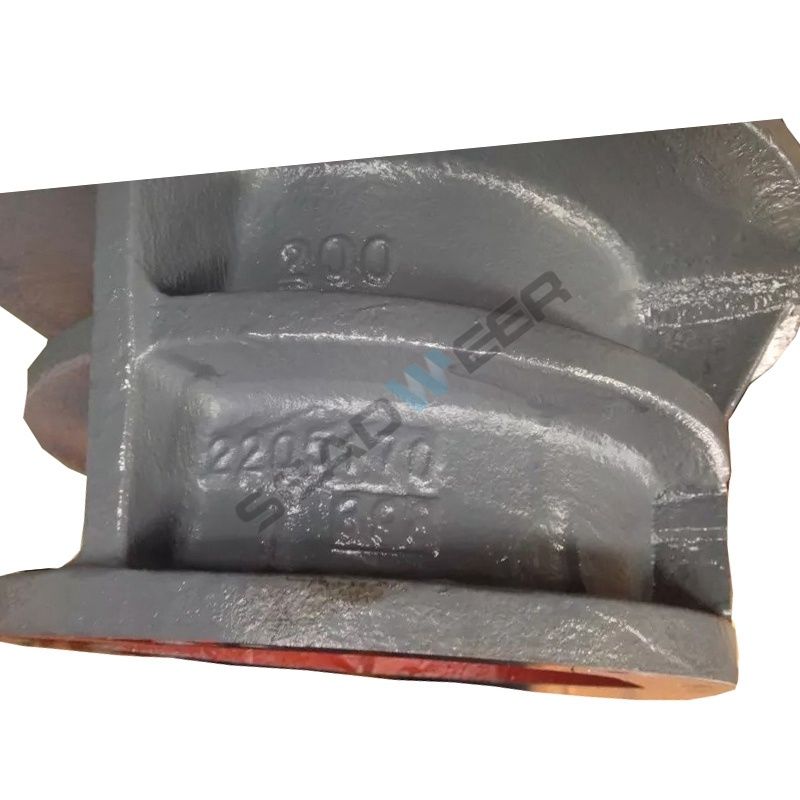

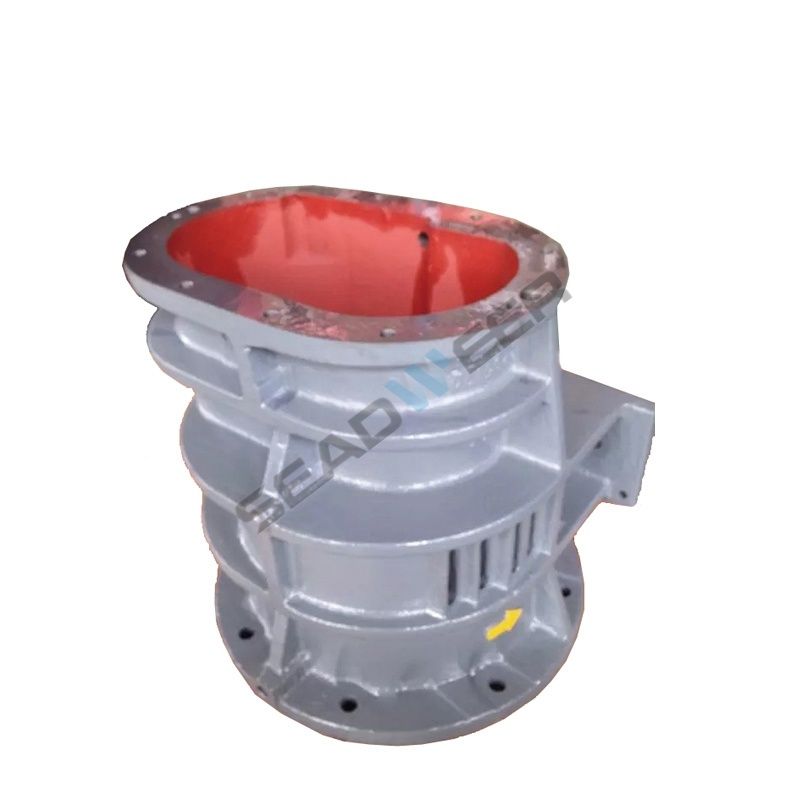

Genuine Atlas Copco Parts: 1092012700 Gear Casing

When maintaining industrial air compressors to factory-original standards, identifying the exact engineering component remains critical for maximizing system integrity. Within the official Atlas Copco aftermarket database and technical documentation, part number 1092012700 designates the official GEAR CASING. It is essential for procurement managers and technical engineers to recognize that this part number refers specifically to the heavy-duty housing structure itself, rather than a complete gearbox assembly containing internal gear wheels.

As a core structural foundation of the compressor drivetrain, this factory-original component ensures that your machinery maintains peak volumetric efficiency, excellent thermal regulation, and long-term operational safety. By selecting authentic equipment parts, industrial facilities actively eliminate the severe risks of unexpected downtime and premature mechanical wear.

1. Technical Profile and Core Identification

To provide purchasing agents and maintenance professionals with a rapid technical reference, the baseline specifications and structural identification data for this original component are outlined in the comprehensive profile below:

Furthermore, because Atlas Copco treats internal engineering drawings, precise coordinate metrics, and microscopic tolerance levels as proprietary intellectual property, the brand does not publish raw dimensional blueprints. However, the physical and chemical engineering characteristics of this housing conform perfectly to the rigorous requirements of high-pressure industrial environments.

2. Material Engineering and Manufacturing Characteristics

Continuous air compression generates intense physical stresses and thermal energy within the compressor transmission loop. Consequently, Atlas Copco utilizes advanced metallurgical science to manufacture the 1092012700 gear casing, ensuring it delivers unwavering reliability under severe operating conditions.

High-Strength Aluminum Alloy or Ductile Cast Iron: The housing composition features premium-grade metals that provide outstanding structural rigidity. This high strength ensures that the bearing alignment positions never warp or shift, even during prolonged periods of high-load operations.

Superior Thermal Conductivity: The specific alloy chemistry facilitates rapid heat dissipation away from the internal high-speed gear sets. By actively conducting thermal energy to the outer environment, the casing prevents localized overheating and extends the service life of internal lubricants and bearings.

Precision CNC Machining: Following the initial precision industrial casting phase, advanced Computer Numerical Control (CNC) machine tools finish the casing. This precision machining achieves exceptionally tight interference fits for all bearing seats, locating pinholes, and sealing grooves, which guarantees seamless structural mating.

Industrial-Grade Surface Protection: The exterior surfaces feature a specialized, corrosion-resistant industrial coating that repels environmental humidity and chemical exposure. At the same time, the internal walls undergo a dedicated anti-corrosion and oil-resistant treatment to prevent any chemical degradation from prolonged contact with hot compressor lubricants.

3. Key Functions Within the Compressor System

While the material integrity forms the structural bedrock of this component, its exact geometric engineering allows it to execute several active, dynamic functions within the air compressor. Specifically, the gear casing excels in the following critical mechanical areas:

• Secures Precise Mechanical Alignment: The housing provides absolute rigid support for the internal high-speed gear wheels, drive pinions, and rotating shafts. By maintaining the exact center-to-center distances required by factory specifications, it guarantees a flawless gear meshing contact pattern and eliminates uneven tooth wear.
• Integrates Leak-Free Lubrication: This gear casing features specialized internal oil passages cast directly into its structure. These channels facilitate continuous oil circulation, delivering uninterrupted spray lubrication directly onto the spinning gears and bearings while simultaneously preventing oil leakage at the structural joints.
• Absorbs Heavy Dynamic Loads: During startup and high-pressure operational cycles, the drivetrain experiences intense radial and axial forces. The robust cast geometry of the casing effectively absorbs these cyclical mechanical loads, protecting the more delicate air end components from stress-induced deformation.
• Contributes to Total Noise Reduction: By optimizing material density and utilizing vibration-dampening structures, the casing actively minimizes mechanical resonance. This rigid vibration isolation results in much smoother compressor operations and a significantly quieter factory environment.

4. System Applications and Compatibility Verification

The 1092012700 gear casing integrates seamlessly into the transmission drivetrain of selected Atlas Copco mid-to-high power oil-injected screw air compressors. In a standard system configuration, the component bridges the mechanical gap between the primary drive motor and the rotary air end, protecting the multiplier gears that drive the male and female rotors.

This original equipment component most commonly pairs with selected configurations within the globally recognized Atlas Copco GA Series. Potential model applications include, but are not limited to, the following compressor frameworks:

• GA37 and GA37+ Configurations
• GA45 and GA45+ Systems
• GA55 Regular and Premium Series
• GA75 Heavy-Duty Compressors
• Variable Speed Drive (VSD) Models
• Full Feature (FF) Integrated Air Dryer Models

Important Technical Disclaimer: Because internal drivetrain designs often shift based on the specific year of manufacture, regional engineering regulations, and targeted pressure outputs (e.g., 7.5 bar, 8.5 bar, 10 bar, or 13 bar), a generic model match is insufficient for ordering. Maintenance teams must always verify compatibility using the unique Product Number or Serial Number stamped on the air compressor’s official nameplate before finalizing a parts procurement request.

5. Technical Maintenance and Installation Protocols

To preserve the long-term operational safety and efficiency of your compressed air infrastructure, service technicians must adhere to strict engineering rules whenever handling or replacing the gear casing during routine overhauls:

First, technicians must thoroughly inspect the internal bearing seats for any microscopic signs of frictional wear or oval deformation before executing the reassembly process. Second, because high operating temperatures place extreme stress on chemical seals, maintenance crews must completely discard old sealing components and install brand-new, factory-certified O-rings and gaskets during every casing reinstallation.

Finally, when fastening the housing back onto the air end and motor flanges, engineers must strictly follow the original Atlas Copco tightening torque specifications. Utilizing a calibrated torque wrench and implementing a cross-symmetrical tightening pattern ensures uniform pressure distribution, effectively preventing microscopic structural distortion and eliminating the risk of future oil weeping or thermal leakage.

6. Frequently Asked Questions (FAQ)

Q1: Is Atlas Copco part number 1092012700 a complete gearbox assembly?

A: No, it is not. Part number 1092012700 refers exclusively to the cast aluminum or iron gear casing housing structure. It does not include the internal drivetrain components such as the primary gear wheel, the high-speed pinion, the drive shafts, or the internal bearings. Those rotating mechanical parts carry their own independent factory part numbers.

Q2: Why should we select a factory-original gear casing instead of an alternative copy?

A: Selecting a factory-original component guarantees absolute dimensional stability, correct metallurgy, and precise interference tolerances. Copycat parts often fail to duplicate the exact thermal conductivity and vibration-dampening qualities of the original casting. Consequently, choosing non-genuine housings can cause shaft misalignment, bearing overheating, and catastrophic drivetrain failure.

Q3: How do I verify if this specific gear casing fits my GA-series compressor?

A: The most reliable method is to locate the metal nameplate on the external frame of your air compressor. Note down the 10-digit Product Number (or the Serial Number) and provide it to our technical support desk. Our team will cross-reference this data within the official Atlas Copco Link parts system to ensure a flawless match.

Q4: Are the required installation seals and gaskets included with this part number?

A: Generally, this part number covers the physical gear casing structure only. Because professional engineering standards dictate the mandatory replacement of all matching O-rings, seals, and interface gaskets during an installation, we highly recommend confirming your sealing requirements with our engineers so we can provide the correct factory-certified installation kit alongside the housing.

7. Professional Conclusion and RFQ Guidance

Securing authentic, high-grade structural components is the single most effective strategy to ensure zero down-time and maintain the baseline performance of your industrial air assets. As a dedicated provider of factory-original equipment spare parts, we maintain rigorous quality verification checks for every structural component we distribute.

Because compressed air configurations vary significantly based on unique facility variables and pressure metrics, we invite procurement managers to submit a formal Request for Quote (RFQ). Please share your air compressor’s serial number with our technical helpdesk today. Our factory-trained specialists will immediately verify system compatibility, confirm inventory availability, and deliver a formal, highly detailed technical quotation tailored precisely to your operational needs.

If you need other Atlas Copco air compressor gear parts, we provide more models in the table below or you can submit your requirements to us directly.
