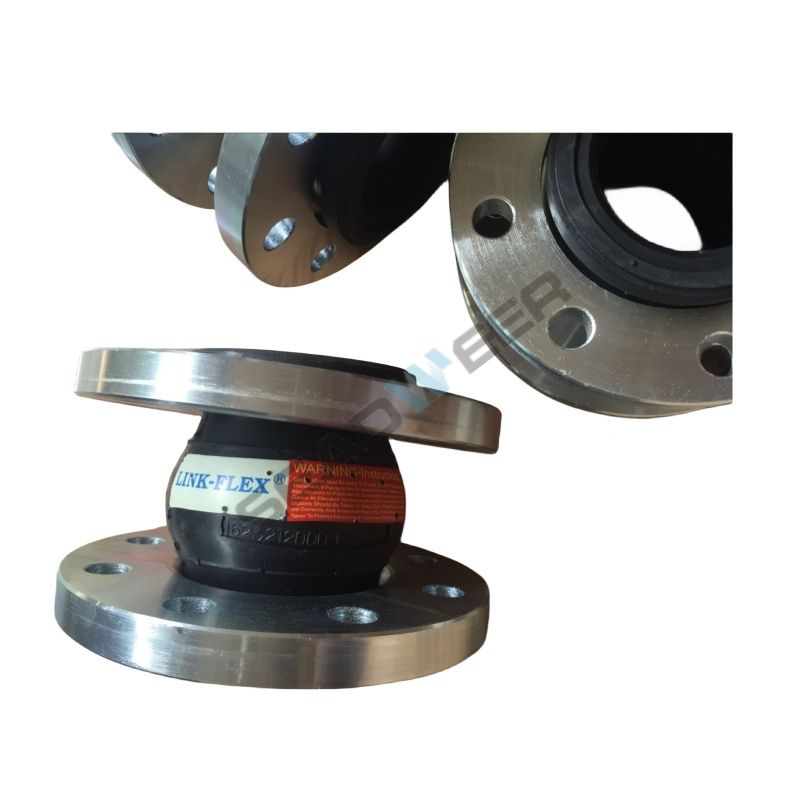

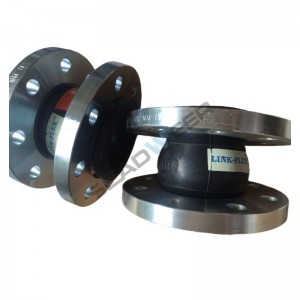

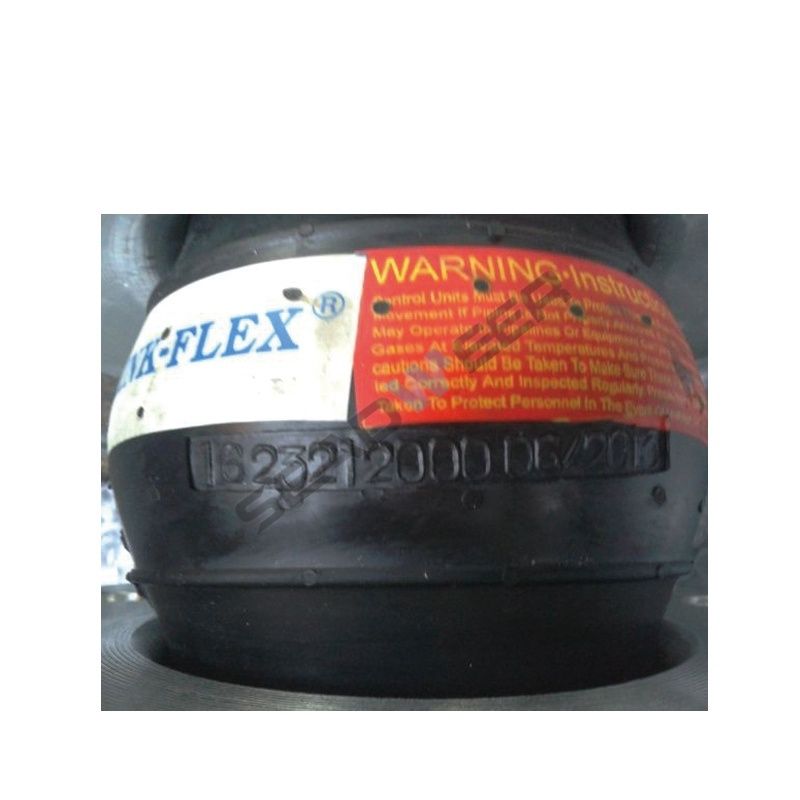

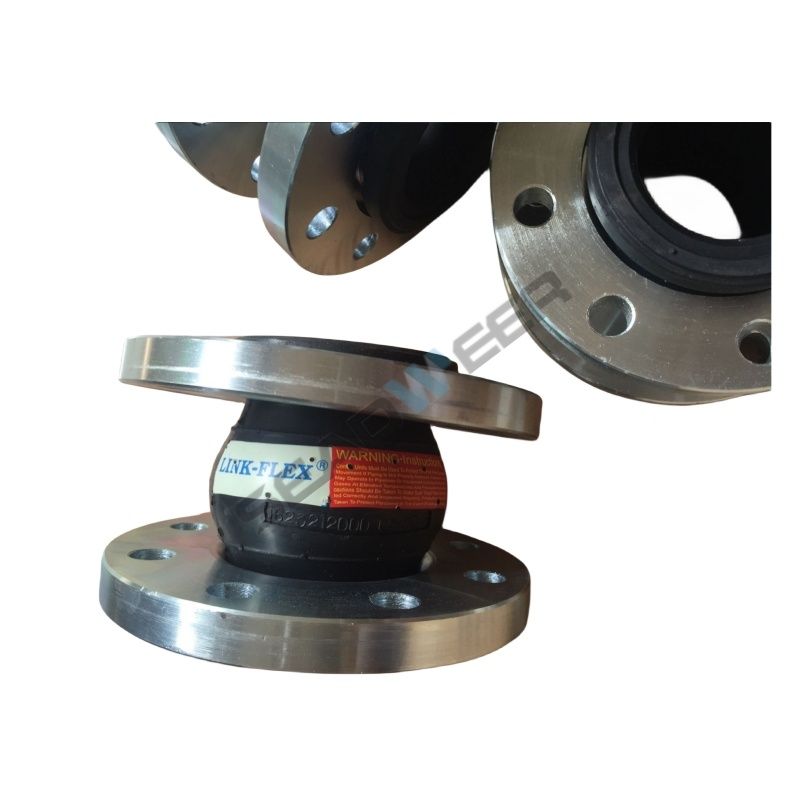

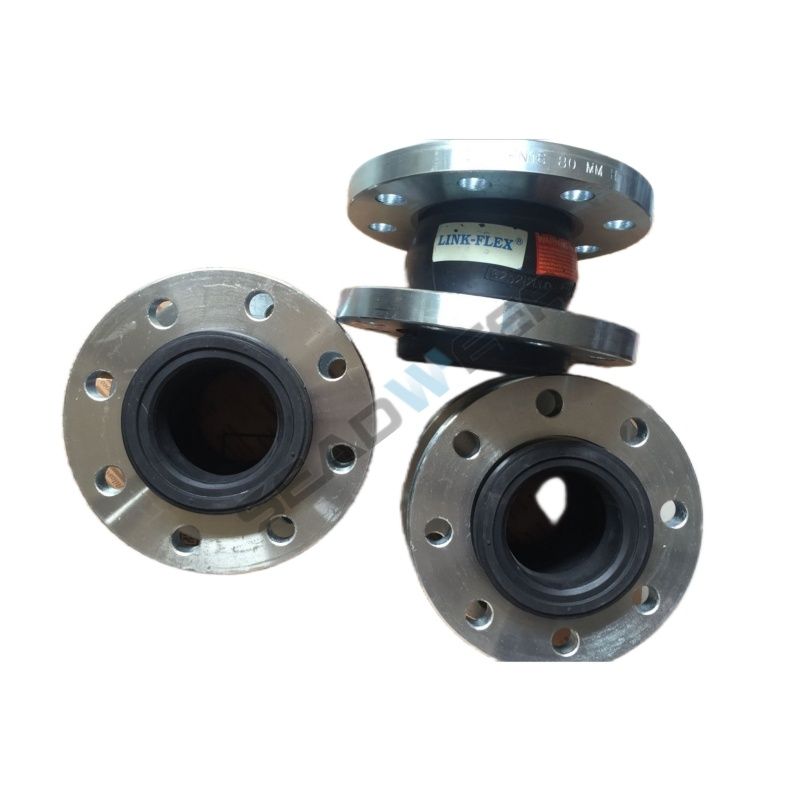

Atlas Copco Air Compressor Rubber Expansion Joint / Compensator (Part No. 1623212000)

Product Overview

The part number 1623212000 is a flexible compensating component used in industrial air compressor systems manufactured by
:contentReference[oaicite:0]{index=0}.
It is commonly referred to as a rubber expansion joint or compensator, designed to provide vibration isolation and thermal movement compensation within compressor piping systems.

In compressed air installations, this component plays a critical role in maintaining system stability by reducing mechanical stress between rigid pipe sections and sensitive equipment such as aftercoolers, intercoolers, and compressor discharge lines.

Product Description

The compensator is a flexible pipeline element constructed from high-performance synthetic rubber reinforced with internal fiber or steel wire layers. Depending on system requirements, metal flanges or clamping ends are used to ensure secure integration into the piping network.

Its wave-structured body design allows controlled flexibility while maintaining pressure resistance, making it suitable for demanding industrial operating environments.

Product Specifications

The following specifications are based on standard industrial design characteristics for this component type and provided technical reference data:

• Product Type: Rubber Expansion Joint / Compensator
• Part Number: 1623212000
• Working Medium: Compressed air, hot air, oil-air mixture in compressor systems
• Material Structure: High-performance synthetic rubber (commonly EPDM or fluoro-rubber class materials) with reinforced fiber or steel cord layers
• Connection Type: Flanged or clamped connection (system dependent)
• Temperature Resistance: Suitable for typical compressor discharge environments, generally from ambient conditions up to above 110°C under operating conditions
• Design Structure: Single or multi-wave flexible bellows structure for axial, lateral, and angular movement absorption

Key Functions and Performance Benefits

• Vibration Isolation: Reduces transmission of mechanical vibration from compressor units to downstream piping systems, improving overall equipment stability.
• Thermal Expansion Compensation: Absorbs pipe displacement caused by thermal expansion and contraction during system operation.
• Noise Reduction: Minimizes vibration-induced noise within compressed air piping networks.
• System Protection: Helps reduce mechanical stress on connected components, extending service life of piping and auxiliary equipment.

Application Areas

This compensator is typically installed in medium to large industrial compressor systems, especially in high-load and high-temperature sections of the pipeline.

• Compressor discharge outlet to aftercooler connection
• Intercooler and intermediate piping systems
• Air treatment and cooling circuit connections

It is commonly found in industrial compressor series such as GA, ZR, and ZT configurations, depending on system design and piping layout requirements.

Installation Guidelines

• Ensure the compensator is installed without torsion, overextension, or compression beyond design limits.
• Use even torque distribution when tightening flange bolts to prevent uneven stress loading.
• Verify alignment of connected piping before installation to avoid premature wear or failure.
• Support adjacent piping to prevent excessive load transfer onto the compensator.

Maintenance Recommendations

Regular inspection of the expansion joint is recommended as part of routine compressor maintenance. Key focus areas include:

• Surface condition of rubber body (cracks, hardening, or deformation)
• Leakage at flange or connection points
• Signs of excessive vibration or misalignment in adjacent piping

Frequently Asked Questions (FAQ)

Q1: What is the main purpose of this compensator?

It is designed to absorb vibration and compensate for thermal expansion in compressor piping systems, ensuring stable and safe operation.

Q2: Can this part be used in high-temperature air systems?

Yes, it is engineered for compressor discharge environments where elevated temperatures are common, typically exceeding 110°C under normal operating conditions.

Q3: How do I confirm compatibility with my compressor?

Compatibility should be verified using the compressor serial number and official parts manual to ensure that part number 1623212000 matches the required piping configuration.

Q4: What are the risks of using an incorrect expansion joint?

Incorrect components may lead to leakage, premature failure, excessive vibration transmission, and potential damage to connected compressor systems.

Conclusion

The Atlas Copco 1623212000 rubber expansion joint is an essential component in maintaining the mechanical integrity and operational stability of industrial air compressor systems. By effectively isolating vibration and compensating for thermal movement, it contributes significantly to system reliability and long-term performance in demanding industrial environments.
