Atlas Copco AIRnet 45° Elbow D50 (Part Number: 2811500480) – Genuine Industrial Pipe Fitting

Product Overview

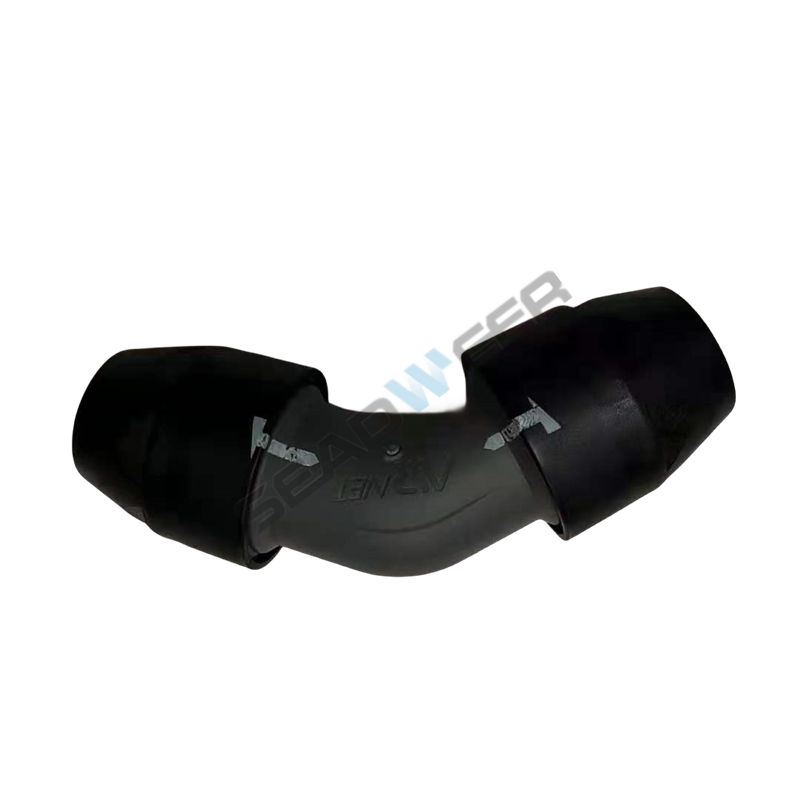

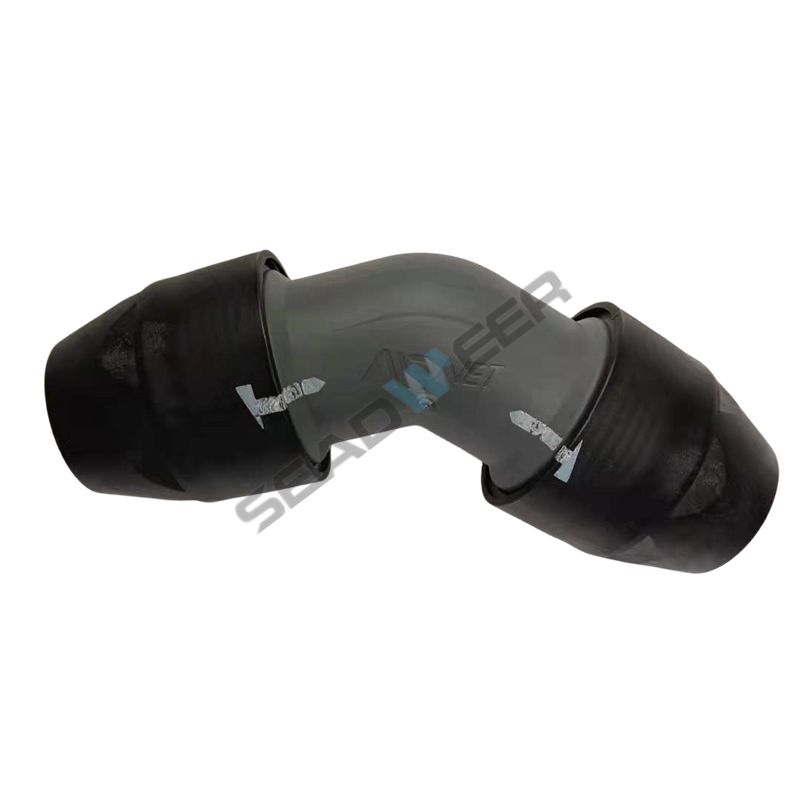

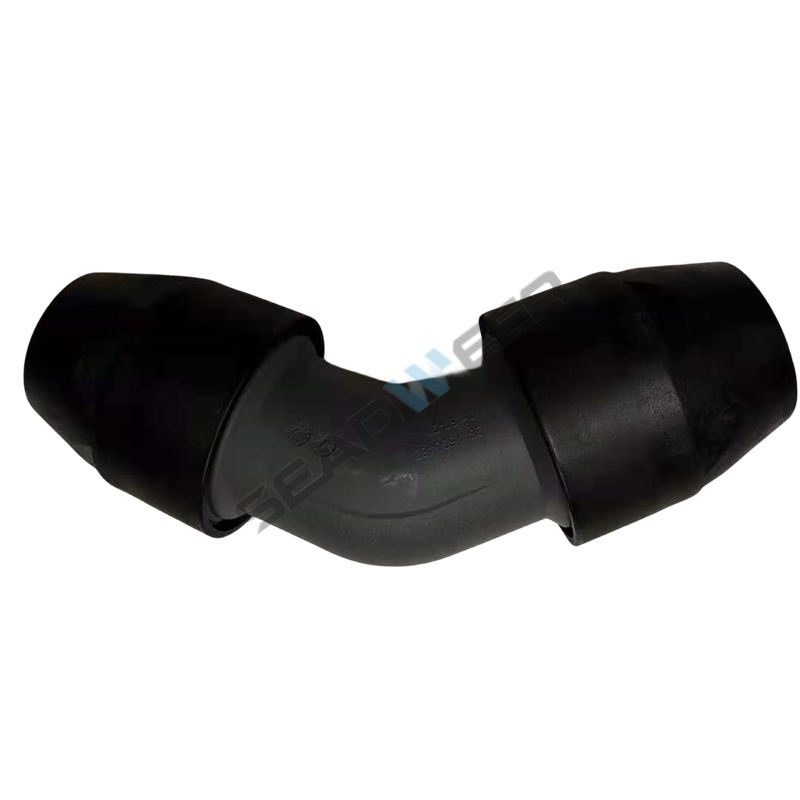

The Atlas Copco AIRnet 45° Elbow D50 (Part Number: 2811500480) is an authentic, premium-grade pipe fitting manufactured by Atlas Copco. It is engineered explicitly for the AIRnet piping system, a fast-install solution designed for the distribution of compressed air, vacuum, and inert gases. This component serves as an upgraded engineering solution, replacing the older part number 2810500400. Featuring an advanced push-to-fit mechanism, this genuine connection accessory delivers outstanding leakproof performance, ease of installation, and structural integrity in demanding industrial pipeline layouts.

Technical Specifications

All data points listed below are derived from official product technical documentation:

• Brand: Atlas Copco
• Product Line: AIRnet Piping Systems
• Description: 45° Equal Elbow / ELBOW 45 DEG. D50 FOR AIRNET SYSTEMS
• Part Number: 2811500480 (also written as 2811-5004-80)
• Predecessor Part Number: 2810500400 (Directly compatible legacy part)
• Fitting Type: Push-to-Fit connection (Upgraded design for tool-free, instant socket insertion)
• Outside Diameter (OD): 50 mm (Approximately equivalent to 2 inches)
• Bend Angle: 45°
• Gender / End Connections: Female-to-Female, Compression-to-Compression socket ends
• Maximum Operating Pressure: 16 bar / 232 psi
• Material: High-performance engineering plastics / Lightweight, high-corrosion-resistant composite material
• Net Weight: 0.630 kg
• Physical Dimensions: 250 mm (Length) × 150 mm (Width) × 130 mm (Height)
• Minimum Pack Quantity: 1 pc/box

Product Advantages and Industrial Applications

The Atlas Copco 2811500480 elbow offers specific technical advantages designed to optimize network efficiency and plant operations:

• Low Pressure Drop: By utilizing a 45° angle instead of a sharp 90° bend, this fitting ensures a smoother volumetric flow. This configuration drastically minimizes pressure drop losses throughout the compressed air network, enhancing overall compressor efficiency.
• Advanced Push-to-Fit Connection: Upgraded for post-2015 configurations, the socket design enables quick compression installation without requiring welding, threading, or specialized tools, significantly cutting down on pipeline assembly and maintenance timelines.
• Corrosion and Leak Resistance: Constructed from specialized high-performance composite engineering plastics, the component eliminates risk of rust or internal pipe scaling, ensuring downstream air quality remains uncompromised.
• System Compatibility and Flexibility: It is fully backwards compatible with older networks that utilize the previous 2810500400 part number. The fitting is typically utilized in industrial facilities to safely route piping around structural obstacles such as existing utility lines, I-beams, pillars, or ceiling rafters.

Frequently Asked Questions (FAQ)

Is the part number 2811500480 fully compatible with older systems using 2810500400?

Yes. Part number 2811500480 is the official upgraded version of the legacy part number 2810500400. It is fully backwards compatible and can directly replace the older component in existing AIRnet aluminum piping layouts without any structural adjustments.

What medium is this fitting approved to transport?

This fitting is strictly designed for official AIRnet systems conveying compressed air, vacuum systems, and inert gases.

Does this elbow require professional welding tools for setup?

No, it does not. The fitting features Atlas Copco’s proprietary push-to-fit mechanism. It allows secure, leakproof, female-to-female compression connection directly onto 50 mm outside diameter pipes without the need for complex tools.

What is the pressure limit for this specific accessory?

The fitting is rated for a maximum working pressure of up to 16 bar or 232 psi, aligning with the standard operational limits of industrial-grade AIRnet aluminum pipe networks.
